Attaching Implement to Quick Coupler

CAUTION: To avoid bodily injury or machine damage, put transmission in PARK position and check the full range of hitch for interference, binding, or PTO separation whenever an implement is attached.

Do not stand between tractor and implement.

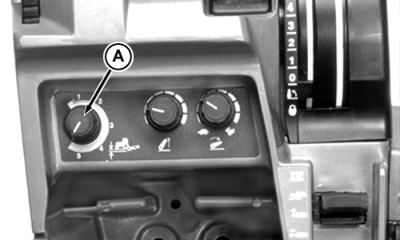

1. Turn load/depth control (A) fully counter clockwise before attaching or detaching implements.

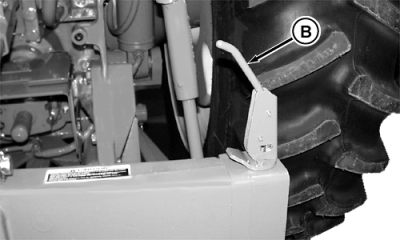

2. Pull up on coupler latch handles (B).

IMPORTANT: Contacting implement hitch pins with the levers in the locked position may result in damage to the latch mechanism.

3. Lower hitch until quick coupler hooks are lower than implement hitch pins.

4. Back up tractor to implement.

AG,RX15494,2707 -19-19JUL00-1/3

5. Raise hitch enough to engage implement pins in hooks.

CAUTION: To avoid bodily injury or machine damage make sure implement is attached correctly. Incorrect attachment can allow implement to be pulled over the tractor wheel and onto the operator station.

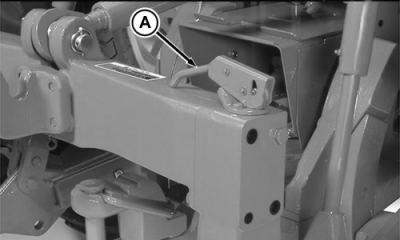

6. Push coupler latch handles (A) down to lock implement to quick coupler.

AG,RX15494,2707 -19-19JUL00-2/3

7. Connect hydraulic hoses and electrical connections.

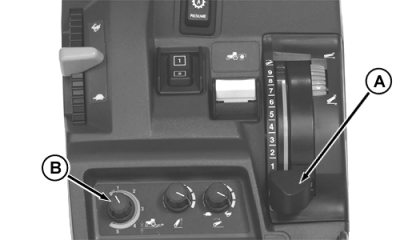

8. Slowly pull hitch control lever (A) to raise implement. Check for interference. Lower implement to ground and adjust upper height limit control if necessary.

9. Turn load/depth control (B) to desired setting.

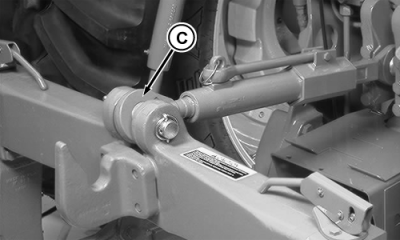

IMPORTANT: When quick-coupler is not used and if the implement upper mast opening is greater than 70 mm (2.8 in.), or if there is less than 14 mm (0.6 in.) around the upper mast hole, use a combination of shims on both sides of center link ball (C).

AG,RX15494,2707 -19-19JUL00-3/3
