Adjusting Implement Level

IMPORTANT: Do not adjust center link length more than 762 mm (30 in.) to avoid interference between quick coupler and center link in high lift (upper hole). Center link could be damaged.

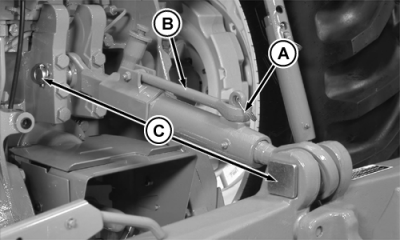

Adjust center link to level implement front-to-rear. Remove lock pin (A), lift latch (B), and slide collar rearward. Rotate center portion of center link to desired position.

Secure latch with lock pin.

Measure between centers of pins (C).

Center Link - Specification

Adjustment -Length

694-865 mm (27.4-34 in.)

AG,RX15494,2709 -19-19JUL00-1/2

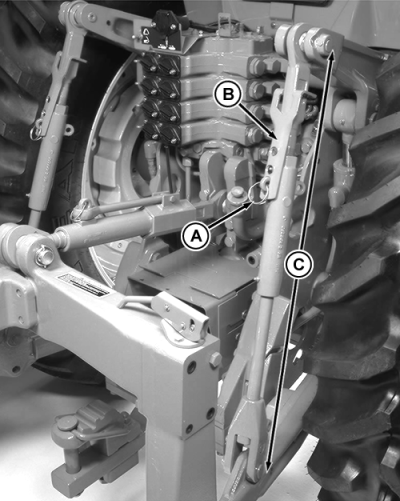

Adjust lift links to level implement side-to-side. Remove lock pin (A) and lift latch (B). Rotate center portion of lift link to desired position.

Secure latch with lock pin.

Measure between centers of pins (C). Float should be locked out.

Lift Link - Specification

Adjustment -Length

969-1064 mm (38.1-41.9 in.)

AG,RX15494,2709 -19-19JUL00-2/2
