Hitch Conversion-Convertible Quick Coupler

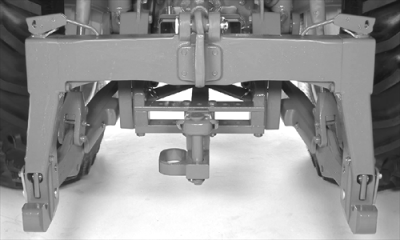

Quick-coupler is convertible to Category 3 or Category 3N. Use Category 3 whenever possible, especially for heavy loads. Its greater width gives more strength.

Use following procedure to convert quick-coupler.

AG,RX15494,2712 -19-27OCT99-1/4

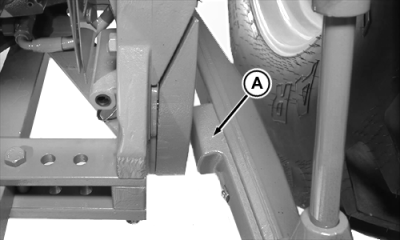

1. Turn thick ends (A) forward on draft link bumpers for Category 3; thin ends forward for Category 3N. Loosen rear cap screw and remove forward cap screw. Pivot bumper on rear cap screw. Reinstall front cap screw. Tighten cap screws securely.

AG,RX15494,2712 -19-27OCT99-2/4

2.

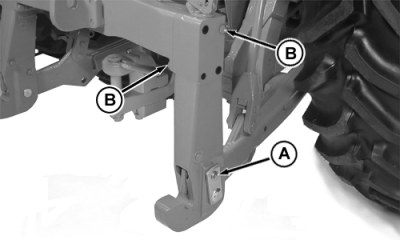

Support center of quick-coupler. Remove pin retaining bolts (A) and pins from draft link. Remove side member cap screws (B).

AG,RX15494,2712 -19-27OCT99-3/4

3.

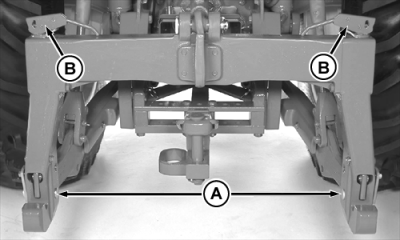

Switch ends with quick-coupler side members (A) (left member to right end and right to left). Tighten cap screws securely.

4. Turn latch handles (B) inward.

AG,RX15494,2712 -19-27OCT99-4/4
