Connecting Hydraulic Hoses

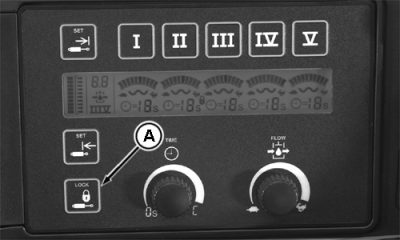

causym CAUTION: Push transport lock touch switch (A) on SCV TouchSet monitor before attaching implements to prevent implement movement and possible personal injury.

IMPORTANT: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly.

Be sure hose ends are clean prior to use to minimize hydraulic system contamination.

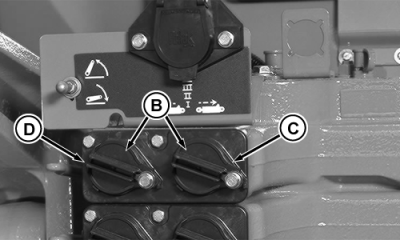

Clean dust covers (B). Turn dust covers upward to expose coupler ports.

NOTE: Remote cylinder couplers are designed I through V with I being the bottom coupler.

Check to be sure connection on coupler matches cylinder travel direction required.

When using SCV with single acting cylinders, plug hose into extend side of coupler (D).

RW26141
RW26262


A-Transport Lock Touch Switch
B-Dust Covers
C-Retract Side
D-Extend Side

AG,RX15494,2719 -19-27OCT99-1/2

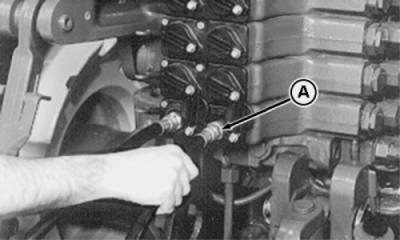

Move SCV lever to neutral position with no time flow "commanded". Push hose (A) firmly into receptacle.

RW26263

AG,RX15494,2719 -19-27OCT99-2/2
