Using Multiple Hydraulic Motor Return

The multiple hydraulic motor return kit provides two additional return port connections in the hitch valve to access the tractor low pressure return circuit.

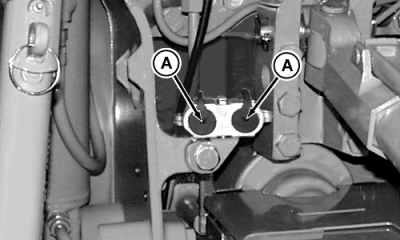

Remove cap from multiple hydraulic motor return coupler (A). Connect return hose to coupler, making sure hose end and coupler are clean.

(See Implement Connection Example 5-Planter With Multiple Motors in this section.)

AG,RX15494,2736 -19-23AUG00-1/1
