Using Power-Beyond Valve and Couplers

Remove caps from power-beyond valve couplers. Connect hoses from hydraulic motor or other equipment requiring an independent control valve, making sure hose ends and couplers are clean.

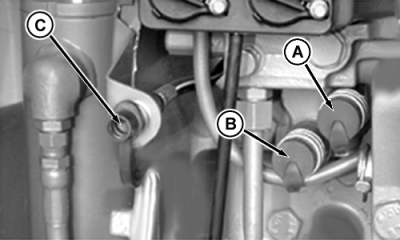

A-Pressure Port
B-Return Port
C-Load-Sense Port

RW27022

AG,RX15494,2738 -19-23AUG00-1/1
