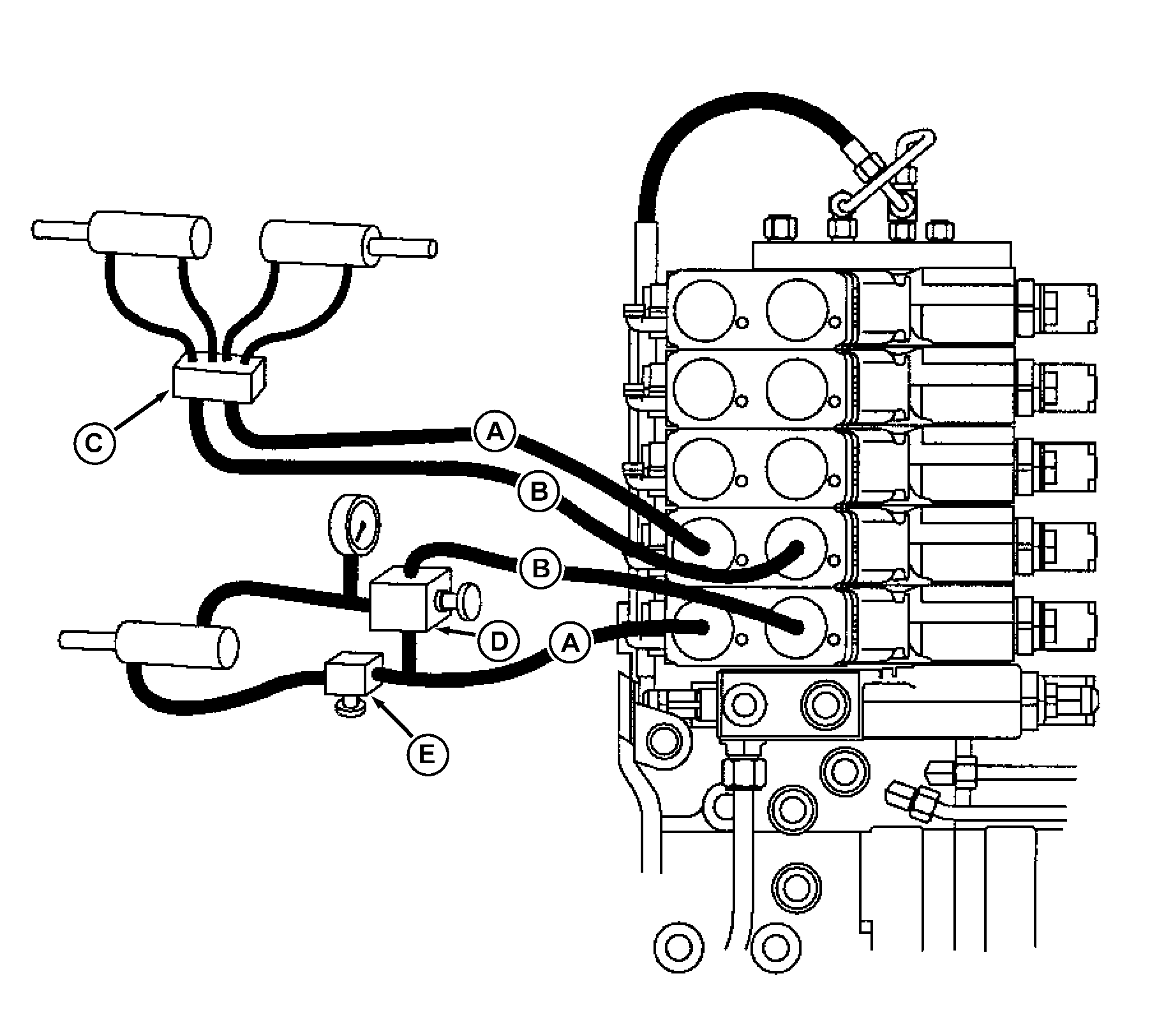

Implement Connection Example 2-Pressure Control Valve Applications (Grain Drills or Air Seeders with Constant Down-Pressure System)

RW56003A

A-Extend Coupler Line
B-Retract Coupler Line

C-Selector Valve

D-Pressure Control Valve

E-Transport Lock Valve

AG,RX15494,2743 -19-27OCT99-1/1
