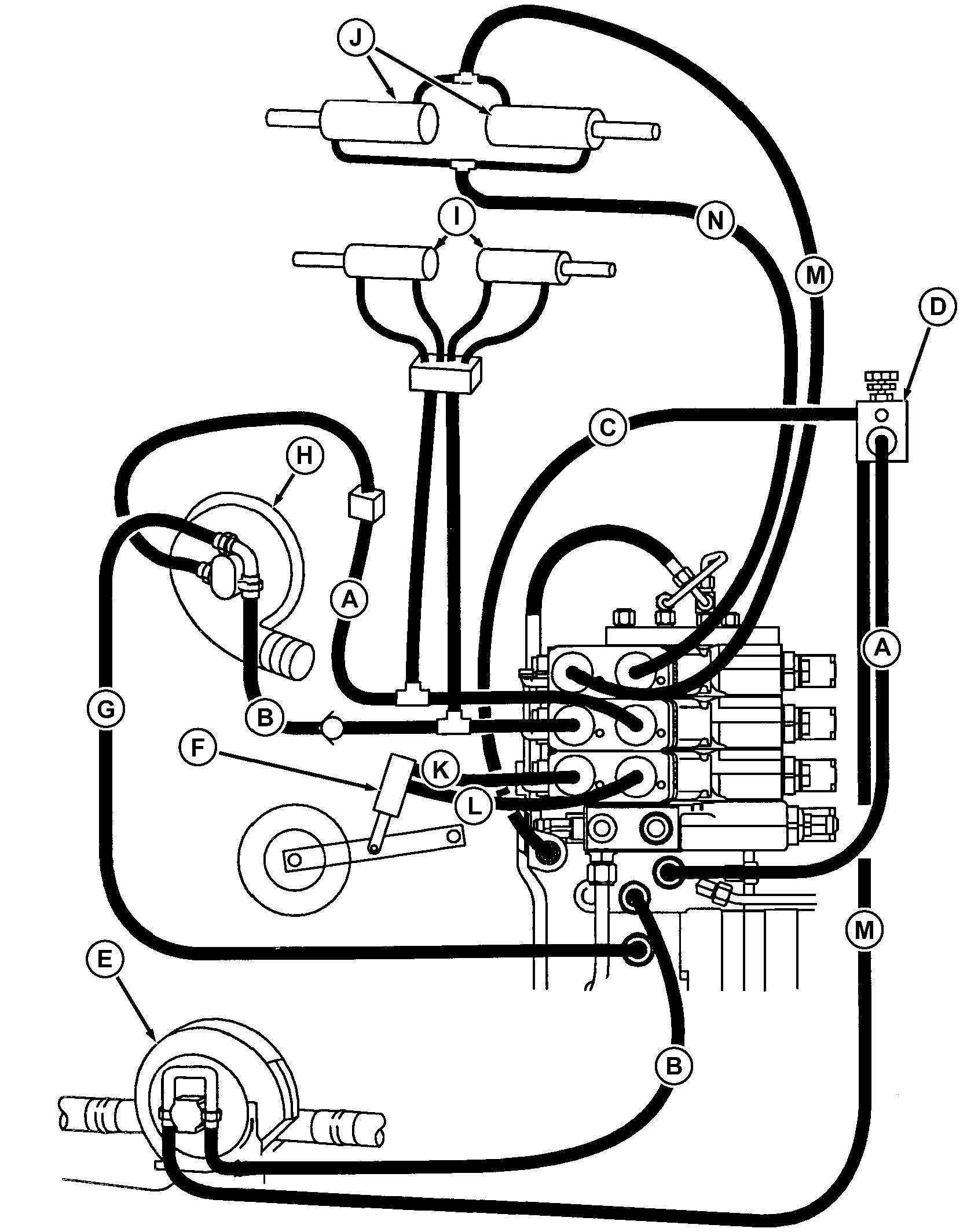

Implement Connection Example 3-Motor Application Using Drain Line to Sump

RW26377


A-Pressure Line
B-Return Line
C-Load Sense Line
D-Control Valve


E-Vacuum Motor
F-Raise/Lower Cylinder
G-Drain Line


H-Fan
I-Markers
J-Fold


K-Extend Coupler Line
L-Retract Coupler Line
M-Controlled Flow Line

AG,RX15494,2744 -19-27OCT99-1/1
