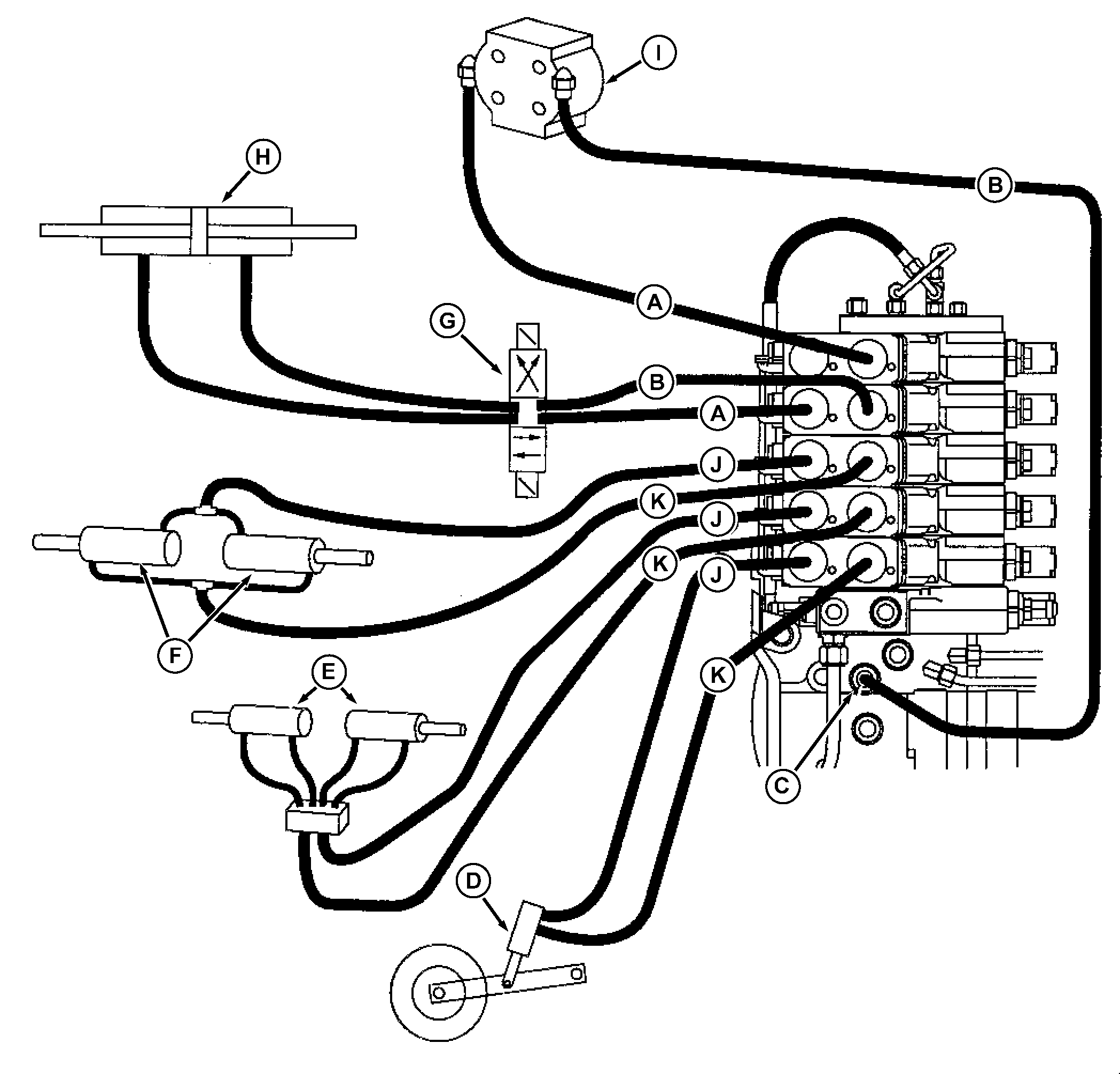

A-Pressure Line
B-Return Line
C-Motor Return Coupler
D-Raise/Lower Cylinder

E-Markers
F-Fold
G-Closed Center Valve Without Load Sense Port

H-Row Guidance Steerable Coulter
I-Hydraulic Motor

J-Extend Coupler Line
K-Retract Coupler Line

AG,RX15494,2745 -19-27OCT99-1/1
