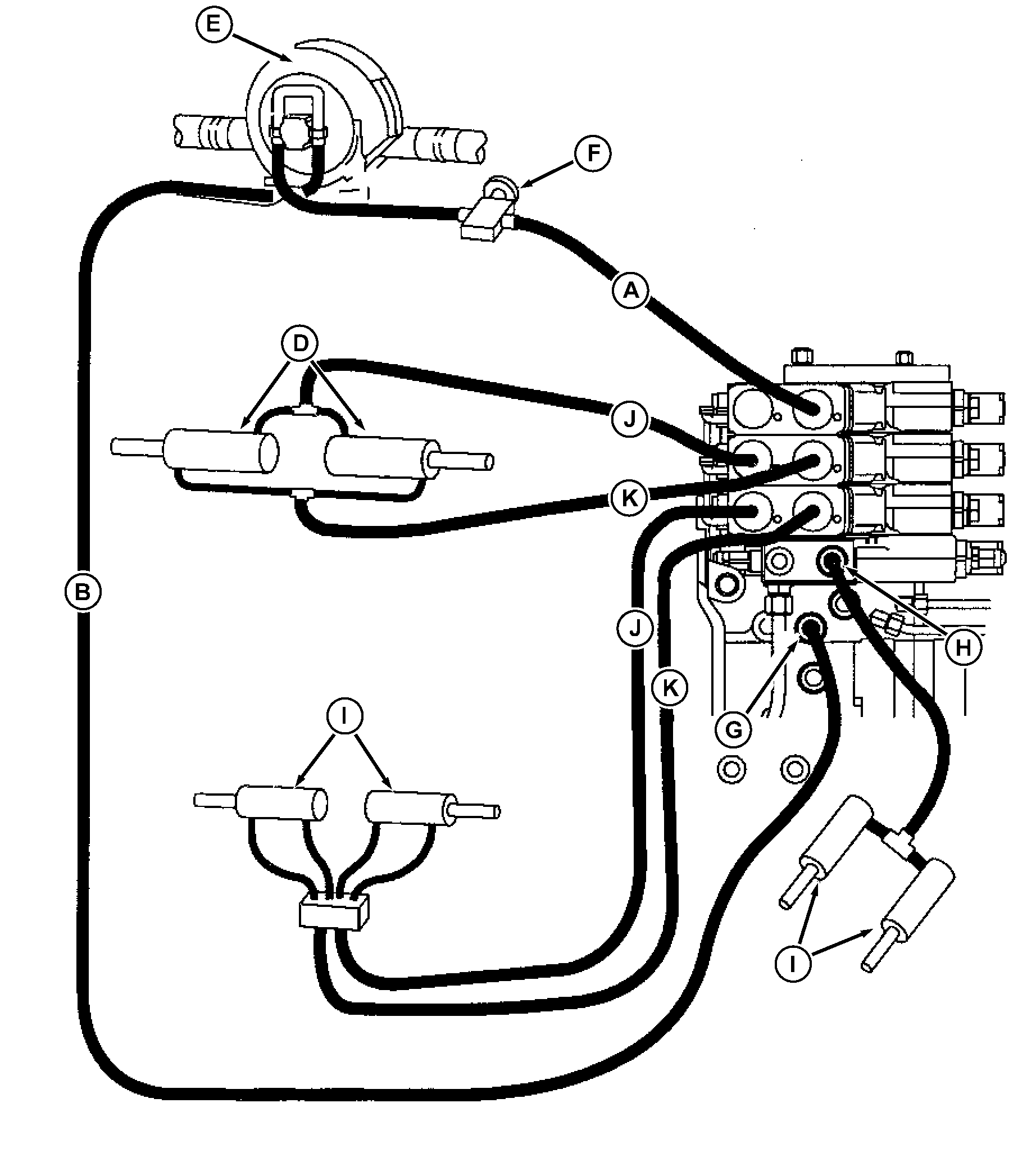

Implement Connection Example 6-Planter with Vacuum Motor and Single-Lever Control of Tractor Rockshaft and Lift Assist

RW56007A


A-Pressure Line
B-Return Line
C-Marker


D-Fold
E-Vacuum Motor
F-Flow Control Valve (Wide Open)


G-Return Coupler
H-Auxiliary Hitch Port
I-Lift Assist


J-Extend Coupler Line
K-Retract Coupler Line

AG,RX15494,2747 -19-27OCT99-1/1
