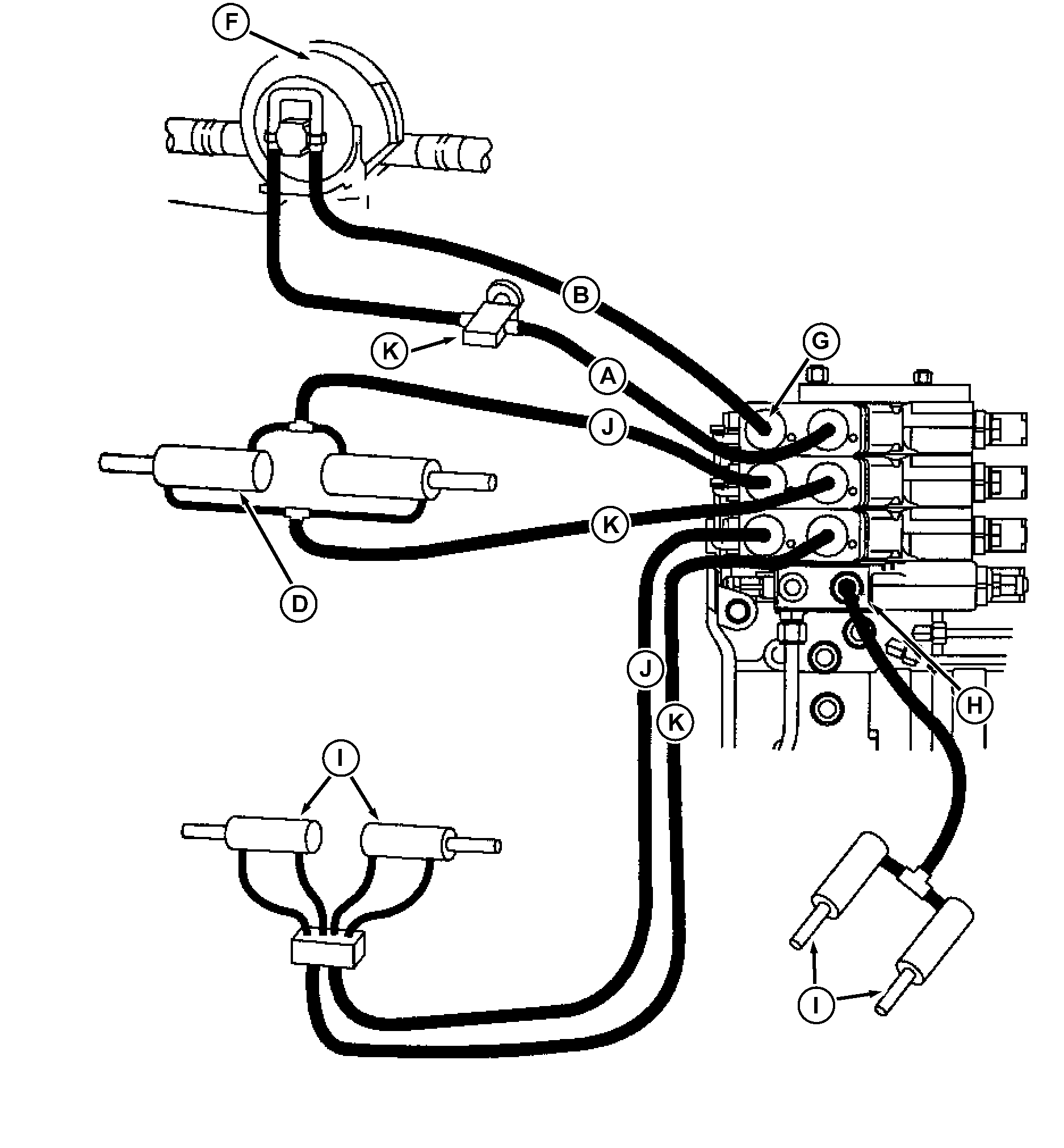

Implement Connection Example 7-Planter with Vacuum Motor and Return Line to SCV Using Motor Return Tip

RW56008A


A-Pressure Line
B-Return Line
C-Marker


D-Fold
E-Flow Control Valve (Wide Open)


F-Vacuum Motor
G-Motor Return Tip
H-Auxiliary Hitch Port


I-Lift Assist
J-Extend Coupler Line
K-Retract Coupler Line
