OMAR178323: 8110, 8210, 8310, and 8410 Tractors( 10 001- ), Block File: AG_RX15494_2750_19

Observing Drawbar Load Limitations

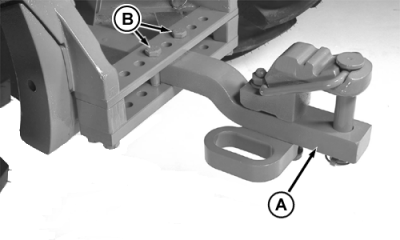

IMPORTANT: Certain heavy implements can place excessive strain on drawbar (A). Strain is greatly increased by speed and rough terrain. Maximum static vertical load on drawbar should not exceed:

8110, 8210, 8310-1657 kg (3650 lb)

8410-1769 kg (3900 lb)

Tighten bolts (B).

Drawbar Locking Bolts - Specification

Locking Bolts -Torque

435 N·m (322 lb-ft)

AG,RX15494,2750 -19-23AUG00-1/1
