OMAR178323: 8110, 8210, 8310, and 8410 Tractors( 10 001- ), Block File: AG_RX15494_2751_19

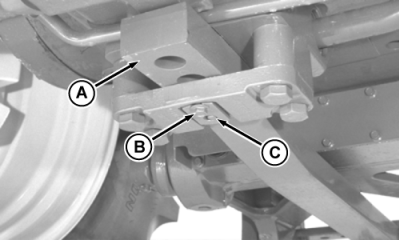

IMPORTANT: For PTO-driven implement, drawbar (A) must be positioned as instructed in Attaching PTO Driven Implement in this section.

Loosen drawbar locking bolts.

Remove cap screw (B), retaining pin (C) and retaining strap.

Slide drawbar to desired position.

Install drawbar retaining strap and pin.

Retaining Cap Screws - Specification

Cap Screw -Torque

70 N·m (50 lb-ft)

Tighten drawbar locking bolts.

Drawbar Locking Bolts - Specification

Locking Bolts -Torque

435 N·m (322 lb-ft)

AG,RX15494,2751 -19-23AUG00-1/1
