Adjusting Drawbar Height

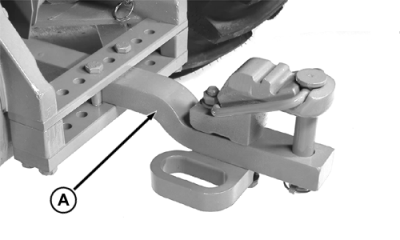

Height of drawbar is adjustable by turning offset (A) up or down. Proceed as in length adjustment. Slide drawbar all the way out and turn drawbar over.

IMPORTANT: Clevis assembly must always be on top of drawbar if used.

AG,RX15494,2752 -19-27OCT99-1/1
