Installing Quik-Tatch Weights

Up to 20 QUIK-TATCH ™ weights can be installed on tractors.

Install QUIK-TATCH weights, balanced on each side of center (A). The first two weights must be installed as a pair.

Run retaining bolts (B) through holes and secure with a nut to hold six weights or fewer in position. Tighten bolts.

Weight Attaching Bolts - Specification

Bolt -Torque 230 N·m (170 lb-ft)

RW26680
RW26681

QUIK-TATCH is a trademark of Deere & Company

AG,RX15494,2772 -19-25AUG00-1/2

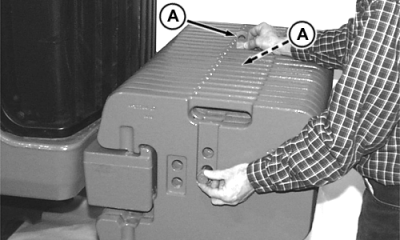

Insert retainers between weights, one with threaded hole upward and the other with threaded hole downward when eight or more weights are installed. Tighten bolts.

Weight Attaching Bolts - Specification

Bolt -Torque 230 N·m (170 lb-ft)

NOTE: When adding front weights some weight is transferred from the rear of the tractor to the front. Use these guidelines to figure tractor weight when front weights are added.

Front Ballast   Front Axle Rear Axle Total Weight

Front Weight Support   +206 -53 +153
One Suitcase Weight   +140 -40 +100
20 Suitcase Weights   +2800 -800 +2000


RW26682

AG,RX15494,2772 -19-25AUG00-2/2
