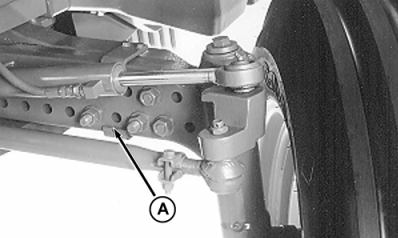

Front Axle Tread Settings-Standard SettingsFront axles (A) have seven standard tread settings. |
|
| Tire Size | Valve Stem Location | Axle Position | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ||
| 11.00-20 | Out | 1525 mm (60 in.) | 1625 mm (64 in.) | 1725 mm (68 in.) | 1830 mm (72 in.) | 1930 mm (76 in.) | 2030 mm (80 in.) | 2135 mm (84 in.) |
| In | 1625 mm (64 in.) | 1725 mm (68 in.) | 1830 mm (72 in.) | 1930 mm (76 in.) | 2030 mm (80 in.) | 2135 mm (84 in.) | 2235 mm (88 in.) | |
| 11.00-24 | Out | 1525 mm (60 in.) | 1625 mm (64 in.) | 1725 mm (68 in.) | 1830 mm (72 in.) | 1930 mm (76 in.) | 2030 mm (80 in.) | 2135 mm (84 in.) |
| In | 1625 mm (64 in.) | 1725 mm (68 in.) | 1830 mm (72 in.) | 1930 mm (76 in.) | 2030 mm (80 in.) | 2135 mm (84 in.) | 2235 mm (88 in.) | |
| 14L-16.1 | Out | 1575 mm (62 in.) | 1675 mm (66 in.) | 1780 mm (70 in.) | 1880 mm (74 in.) | 1980 mm (78 in.) | 2085 mm (82 in.) | 2185 mm (86 in.) |
| 16.5L-16.1 | Out | 1660 mm (65.5 in.) | 1760 mm (69.5 in.) | 1865 mm (73.5 in.) | 1965 mm (77.5 in.) | 2065 mm (81.5 in.) | 2170 mm (85.5 in.) | 2270 mm (89.5 in.) |
