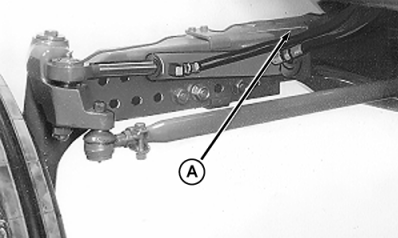

Front Axle Tread Settings-With ExtensionsFront axles (A) have seven tread settings with extensions. |
|
| Tire Size | Valve Stem Location | Axle Position | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ||
| 11.00-20 | Out | 1970 mm (77.5 in.) | 2070 mm (81.5 in.) | 2170 mm (85.5 in.) | 2275 mm (89.5 in.) | 2375 mm (93.5 in.) | 2475 mm (97.5 in.) | 2580 mm (101.5 in.) |
| 11.00-24 | Out | 1970 mm (77.5 in.) | 2070 mm (81.5 in.) | 2170 mm (85.5 in.) | 2275 mm (89.5 in.) | 2375 mm (93.5 in.) | 2475 mm (97.5 in.) | 2580 mm (101.5 in.) |
| 14L-16.1 | Out | 2020 mm (79.5 in.) | 2120 mm (83.5 in.) | 2220 mm (87.5 in.) | 2325 mm (91.5 in.) | 2425 mm (95.5 in.) | 2525 mm (99.5 in.) | 2630 mm (103.5 in.) |
| 16.5L-16.1 | Out | 2105 mm (83 in.) | 2205 mm (87 in.) | 2305 mm (91 in.) | 2410 mm (95 in.) | 2510 mm (99 in.) | 2610 mm (103 in.) | 2715 mm (107 in.) |
