Adjusting Front Axle

IMPORTANT: Do not put jack under engine oil pan.

1. Raise front end of tractor.

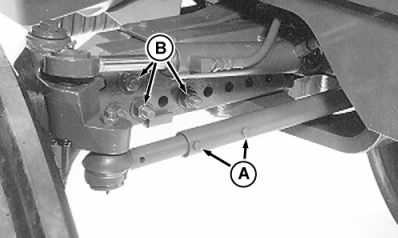

2. Remove bolts (A) from tie rod and bolts (B) from axle.

3. Slide axle knee to desired position and tighten bolts (B).

Front Axle Bolts - Specification

4. Install bolts in tie rod (A) making sure tie rod is changed same amount as axle.

5. Adjust other side using the same procedure. Both sides should normally have the same spacing.

6. Check toe-in and adjust as required.

AG,RX15494,2789 -19-25AUG00-1/1
