Checking Toe-In-Adjustable Axle

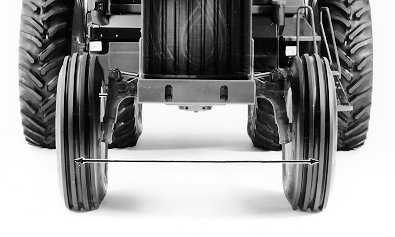

1. Measure distance between tires at hub level in front of axle. Mark the point that is measured.

2. Move tractor back about 1 m (3 ft), so mark is at hub level behind the axle. Again measure distance between tires, at same point on tire.

Front measurement should be 3-9 mm (1/8-3/8 in.) less than rear measurement.
