Adjusting Toe-In-MFWD Axle

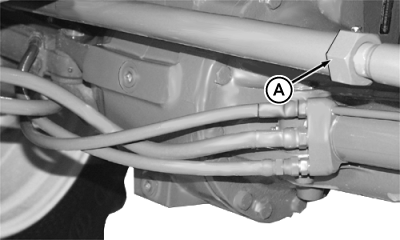

1. Loosen jam nuts (A) on both ends of the tie rod tube.

2. Rotate tube to lengthen or shorten tie rod, as needed to obtain toe-in or toe-out of less than 3 mm (1/8 in.). Each 1/8 turn equals approximately 4 mm (3/16 in.) change.

3. Tighten jam nuts (A) on both ends of tie rod tube.

Jam Nut - Specification

Nut -Torque 200 N·m (150 lb-ft)

RW56646A

AG,RX15494,2793 -19-25AUG00-1/1
