Tread Settings-Off-Set Disk 600/65R Tires

NOTE: Tread settings are measured at bottom centerline of tire.

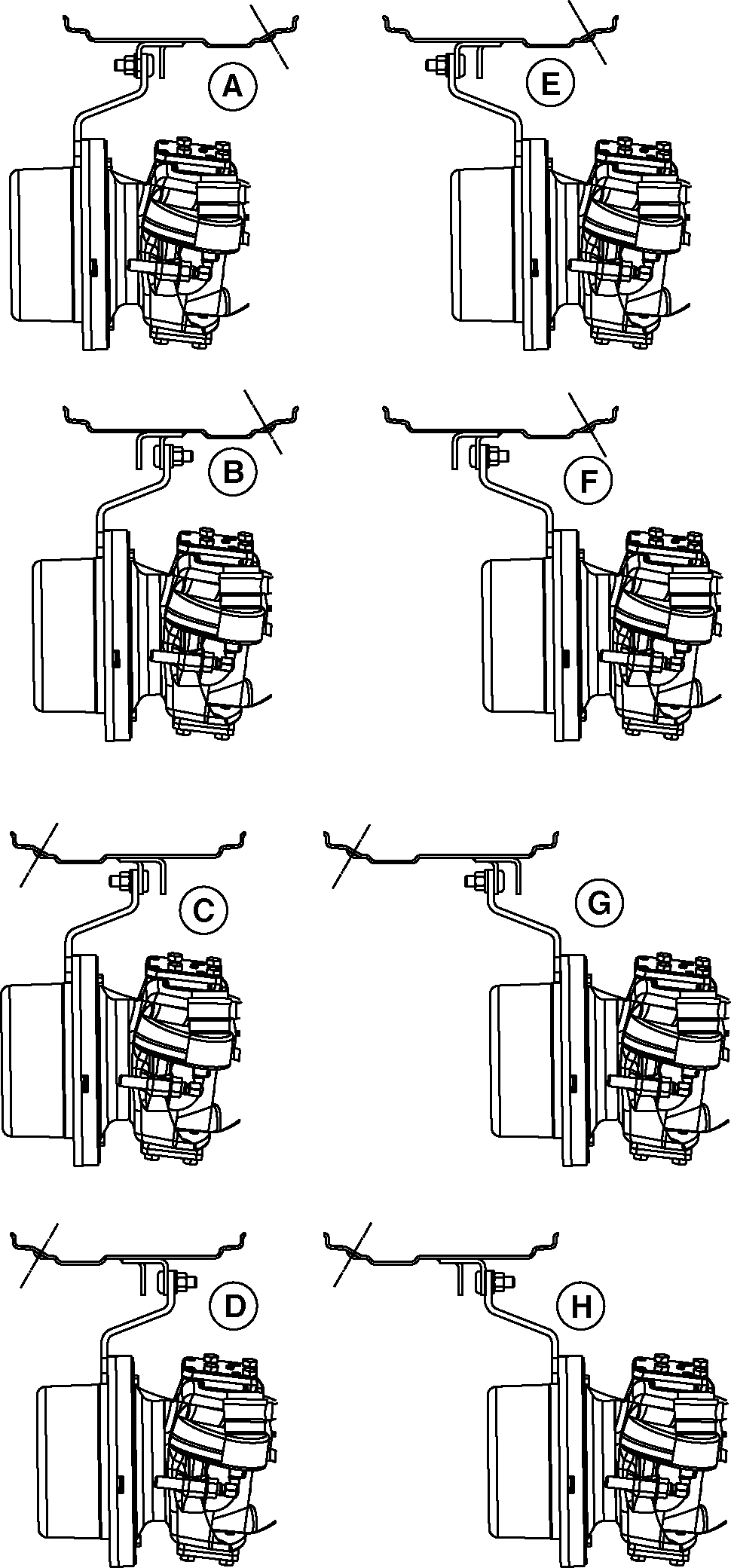

Use diagram as a guide to set rim and disk, to obtain desired tread setting.

  Valve Stem Out Valve Stem In

A- - -
B- - -
C- 1780 mm (70 in.) -
D- 1882 mm (74 in.) -
E- - 1877 mm (74 in.)
F- - 1979 mm (78 in.)
G- 2080 mm (82 in.) -
H- 2182 mm (86 in.) -



IMPORTANT: DO NOT exceed the maximum weight per wheel listed below:

Tread Setting Maximum Weight Per Wheel

2080 mm (81.9 in.) 2800 kg (6170 lb)
2182 mm (85.9 in.) 2475 kg (5460 lb)



After setting wheel spacing, tighten rim-to-disk bolts to 310 N·m (230 lb-ft) and disk-to-hub nuts to 600 N·m (445 lb-ft).

Adjust fenders and steering stops as required.

RW56582
