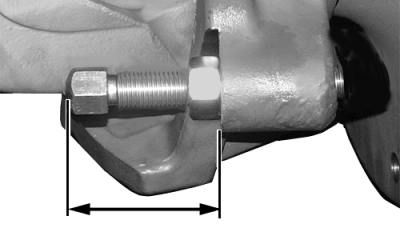

Setting Mechanical Front-Wheel Drive Steering Stop Positions1. Adjust fenders before setting steering stop positions. 2. Select correct steering stop position for tire size and tread setting. See following chart. 3. Set steering stops to correct position as illustrated. 4. Tighten steering stop retaining bolts to 250 N·m (185 lb-ft). 5. Turn wheel fully to the right. Impact knuckle housing to steering stop five times. Repeat for left side. 6. Retighten steering stop retaining bolts to 250 N·m (185 lb-ft). IMPORTANT: These settings allow 25 mm (1 in.) minimum clearance at maximum turn and fully oscillated conditions of axle. Fenders may deflect against side frame, and/or grille screen during full turn. Clearance must be checked under full oscillation and full turn. Check for interference with front weights, tie rods and side frames. 7. Verify clearance by turning steering wheel fully to the left and then to the right.
|
|
|||||||||||||||||||||||||
