Dual Wheels

CAUTION: Avoid personal injury. NEVER run the engine with transmission in gear and rear wheels off the ground. MFWD wheels could pull rear wheels off support. MFWD must be disengaged and transmission in NEUTRAL to rotate axle.

Never operate tractor with loose wheel bolts. Wheel bolts are critical and require retightening. Install wheels and ballast so periodic checking of tightness can be done easily.

IMPORTANT: Check minimum tire spacing between dual wheels (A).

Tighten retaining bolts (B), special sleeve bolts (D), and rim flange bolts. (See Tightening Rear Wheel Bolts in this section.)

NOTE: Checking inflation pressures of inner wheels is much easier, if valve stems of inner and outer tires are aligned at the time the outer wheel is installed.

When removing a wheel for single wheel operation, always remove steel disk wheel (C) and operate tractor on cast wheel with flanged rim (E).

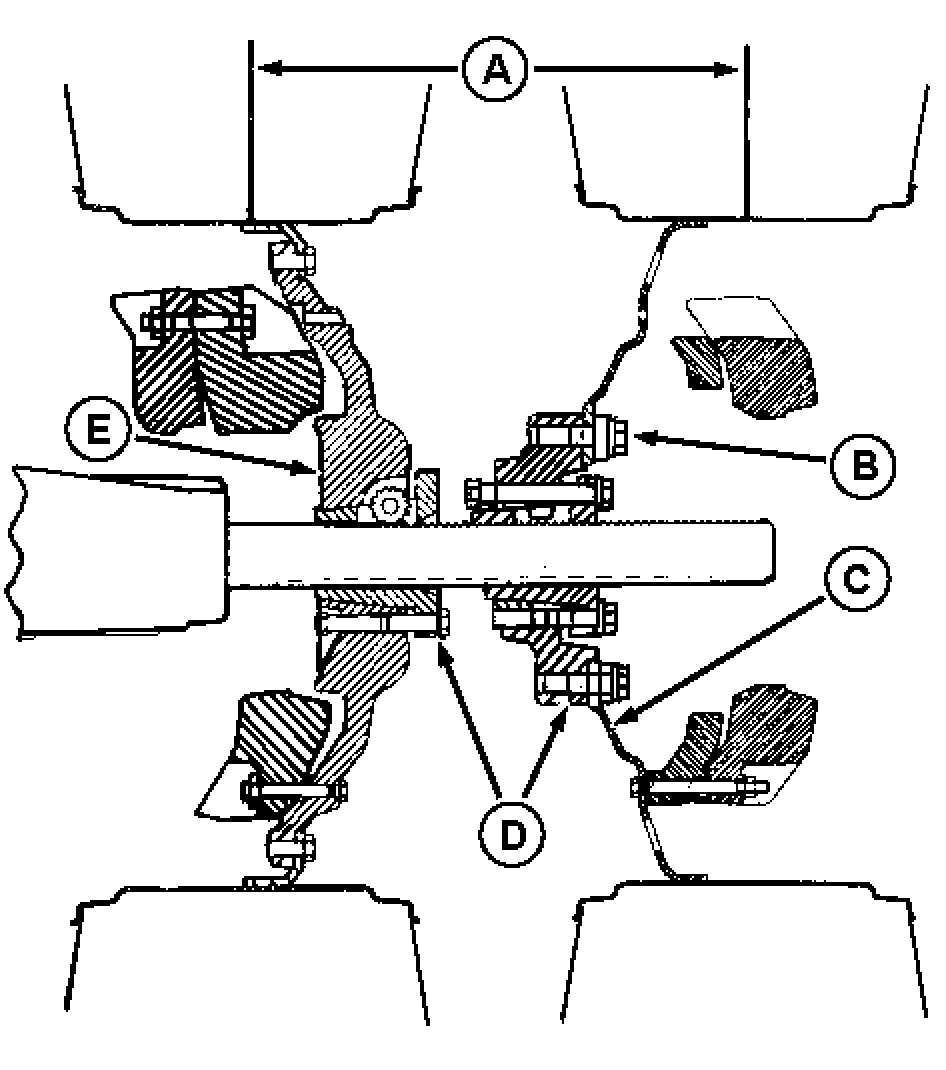

A-Minimum Space
B-Retaining Bolts
C-Steel Disk Wheel
D-Sleeve Bolts
E-Cast Wheel
