Towing Loads

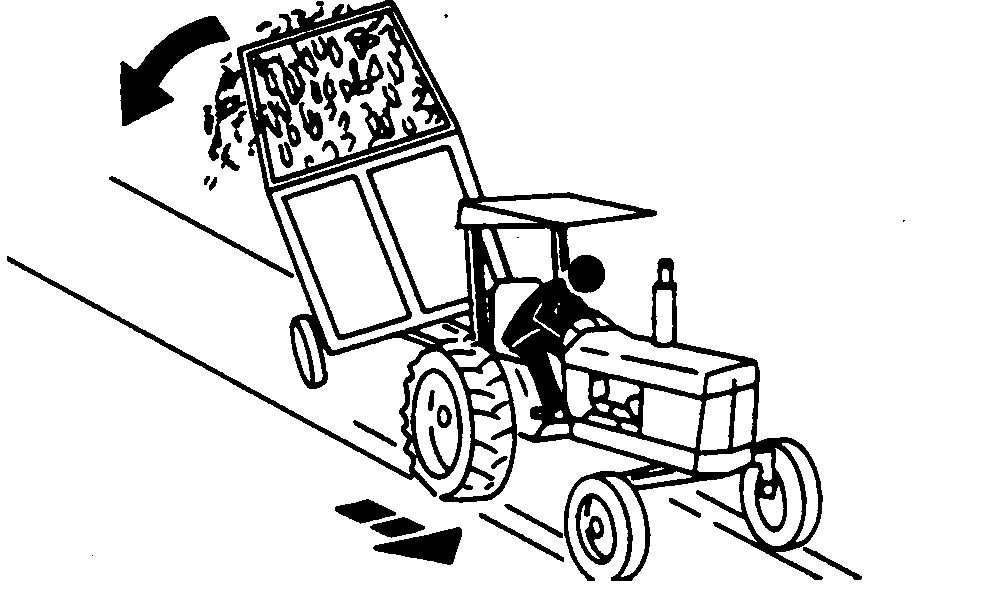

causym CAUTION: Stopping distance increases with speed and weight of towed loads, and on slopes. Towed loads with or without brakes that are too heavy for the tractor or are towed too fast can cause loss of control. Consider the total weight of the equipment and its load.

Observe these recommended maximum road speeds, or local speed limits which may be lower:

If towed equipment does not have brakes, do not travel more than 32 km/h (20 mph) and do not tow loads more than 1.5 times the tractor weight.

If towed equipment has brakes, do not travel more than 40 km/h (25 mph) and do not tow loads more than 4.5 times the tractor weight.

Ensure the load does not exceed the recommended weight ratio. Add ballast to recommended maximum for tractor, lighten the load, or get a heavier towing unit. The tractor must be heavy and powerful enough with adequate braking power for the towed load. Use additional caution when towing loads under adverse surface conditions, when turning, and on inclines.

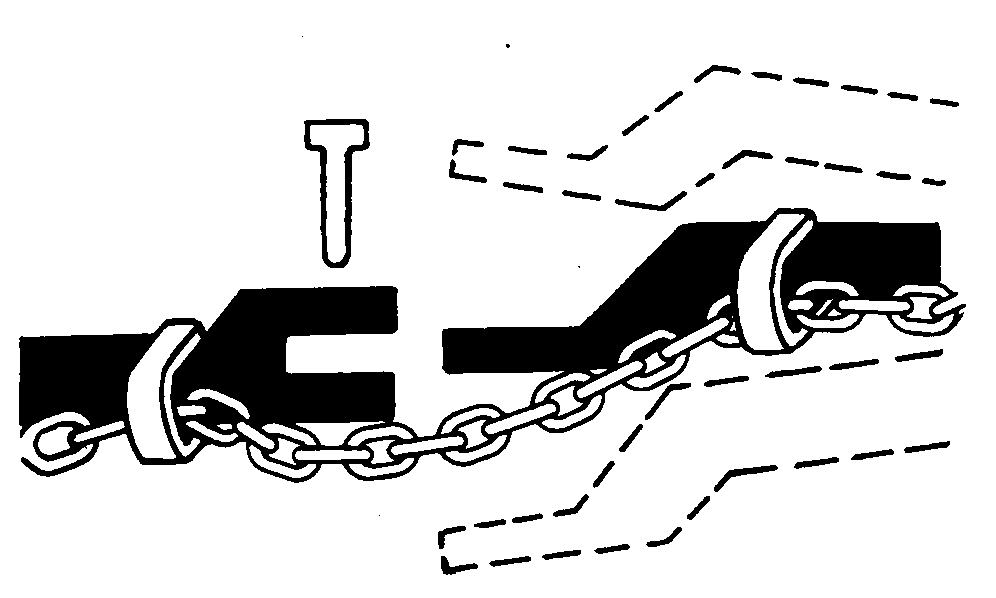

causym CAUTION: Avoid possible accident and injury by using a safety chain on drawn equipment. Use a safety chain with a strength rating equal to or greater than the gross weight of equipment. Provide only enough slack in the chain to permit turning.

Attach the safety chain to the drawbar support or other specified anchor locations.

TS216
TS217

AG,RX15494,2823 -19-27OCT99-1/2

IMPORTANT: DO NOT use safety chain for towing or possible damage to tractor, implement, and drawbar may result. Safety chain is provided only for transport.

Attach and check operation of trailer brakes if equipped.

IMPORTANT: SLOW DOWN when transporting heavy implements.

Drive slowly enough to maintain safe control. Shift to a lower gear for hillsides, rough ground, and sharp turns, especially when transporting heavy equipment.

On icy or graveled grades, be alert for skids which could result in loss of steering control.

Never coast down hill.

Use caution when operating tractor at transport speeds. Reduce speed if towing heavy loads. Heavy towed or rear mounted implements may start swaying in transport. Consult towed equipment operator's manual for recommended transport speeds.

AG,RX15494,2823 -19-27OCT99-2/2
