Freeing a Mired Machine

Attempting to free a mired machine can involve safety hazards such as the mired tractor tipping rearward, the towing tractor overturning, and the tow chain or tow bar (a cable is not recommended) failing and recoiling from its stretched condition.

Back tractor out if it gets mired down in mud. Unhitch any towed implements. Dig mud from behind the rear wheels. Place boards behind the wheels to provide a solid base and try to back out slowly. If necessary, dig mud from the front of all wheels and drive slowly ahead.

If necessary to tow with another unit, use a tow bar or long chain (a cable is not recommended). Inspect the chain or cable for flaws. Make sure all parts of towing devices are of adequate size and strong enough to handle the load.

Always hitch to the drawbar of the towing unit. Before moving, clear the area of people. Apply power smoothly to take up the slack: a sudden pull could snap any towing device causing it to whip or recoil dangerously.

IMPORTANT: Use MFWD axle tie-down loops or two-wheel drive axle bottom support to attach chain. Do Not attach chain around axle to avoid damage to steering cylinders or tie rods. Pull tractor straight forward. Use drawbar to tow tractor out of mired condition if pulling tractor from the rear.

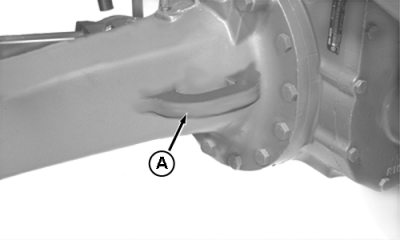

Attach chain to tie-down loops (A) on each axle. Pull tractor straight forward.

AG,RX15494,2825 -19-27OCT99-1/1
