Removing and Installing Front Grille

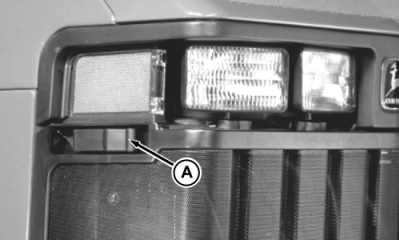

Release latch (A) on each side of grille, tilt forward and lift off.

IMPORTANT: Install grille correctly to prevent trash build up on the heat exchangers.

Set grille on bottom locating pins

Tilt grille rearward onto locating flange on each side

Attach latch on each side of grille

AG,RX15494,2835 -19-27OCT99-1/1
