OMAR178323: 8110, 8210, 8310, and 8410 Tractors( 10 001- ), Block File: AG_RX15494_2837_19

Remove front grille and side shields as previously described.

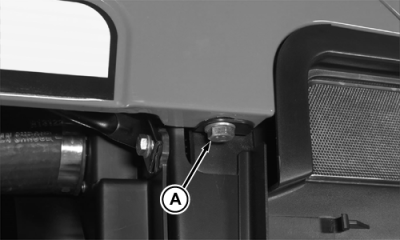

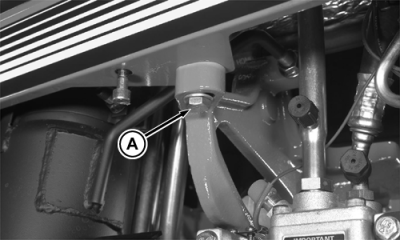

Remove front and rear bolts (A).

Raise front of hood and disconnect front lights.

Lift hood from tractor and set on supports to prevent hood trim damage.

AG,RX15494,2837 -19-27OCT99-1/1
