Accessing Batteries

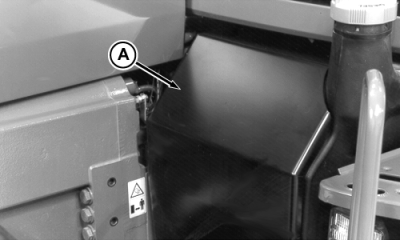

Batteries are located on left side beside steps. To gain access, pull outward on cover (A) and lift off cover.

To replace cover, align the two pins at base, push down on top of cover to align with latches, and push in the cover.

See Service Batteries in the General Maintenance and Inspection Section.

AG,RX15494,2838 -19-27OCT99-1/1
