Cleaning or Replacing Cab Air Filters
| SERVICE INTERVAL - |
| |
CLEAN - 250 HOURS * |
| |
REPLACE-ANNUALLY |
| |
| * Interval can vary according to operating conditions |
 CAUTION:
The air quality system air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator's manual and those given by the chemical manufacturer when using agricultural chemicals.
Recirculation Filter
Remove filter cover (A) behind the seat and remove air filter (B). Replace or clean using compressed air. In dusty conditions, this service may be required more often.
Cab Air Filter

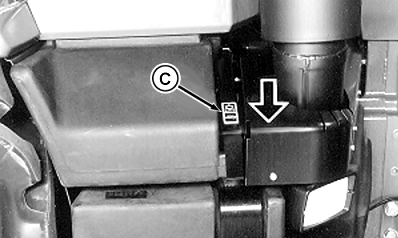

Push down on filter housing release lever (C), lift up on handle, and pull housing from cab. Remove filter from housing. Replace or clean filter using compressed air.
|
