Servicing Air Intake System

1. Check all air intake system joints.

2. Check hose clamps at turbocharger.

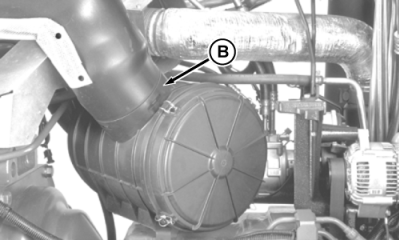

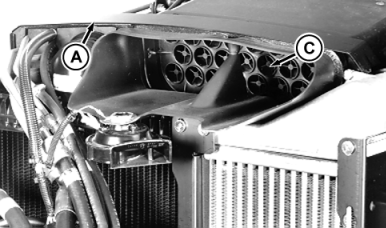

3. Remove pre-cleaner bracket (A) on top of radiator. Remove pre-cleaner from tractor by rotating and sliding out of intake canister inlet (B).

4. Clean aspirator tubes (C) using compressed air, not to exceed 75 psi (500 kPa) (5 bar).

5. Wash in warm water with a mild detergent if compressed air fails to clean adequately. Rinse in clean water. Dry before installing.

AG,RX15494,2847 -19-25AUG00-1/1
