Cleaning Grille Screens, Radiator, and Oil-Cooler Condenser

1. Stop engine and clean front grille screens or side panels using a brush.

2. Remove engine side shields, and remove any trash built up on radiator and cooler-condenser.

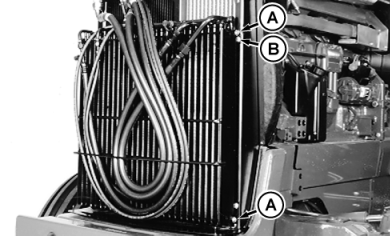

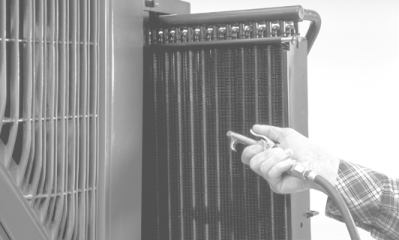

3. If a more thorough cleaning is necessary, detach cooler-condenser from radiator. Remove upper and lower retaining bolts (A). Loosen top rail (B) on both sides of cooler-condenser. Slide cooler-condenser partially out one side, clean and repeat process for the other side. Use compressed air or water. Straighten any bent fins.

AG,RX15494,2849 -19-07FEB00-1/1
