Checking Manual Brakes

With engine stopped, check manual brakes for correct function:

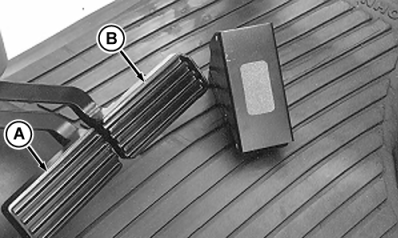

1. Pump individually the left brake (A) and right brake (B). The pedals should have a solid feel. If pedals do not feel solid, bleed the brakes or see your John Deere Dealer.

2. Check to make sure the pedals do not settle to the end of stroke within 10 seconds after being applied. If leakage exceeds this rate or if one pedal settles faster than the other, see your John Deere Dealer.

3. Press both pedals simultaneously. A solid pedal should be obtained at approximately the same pedal height on both pedals. If height varies more than 51 mm (2 in.) bleed the brakes or see your John Deere Dealer.

IMPORTANT: Any noticeable pedal drift downward from the point of resistance indicates brake leakage. See your John Deere Dealer.

A solid pedal and balance between the left and right pedals are important for emergency braking conditions when the latch bar is used.
