Checking Transmission-Hydraulic Oil Level

Operate engine at approximately 1000 rpm for at least one minute and then shut off engine and wait an additional two minutes before checking oil level.

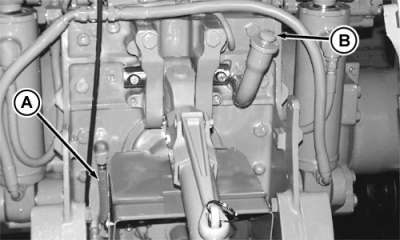

Observe oil level in site glass (A) with tractor on level ground, three-point hitch in the lowered position, and engine stopped . Oil level should be at the upper mark on the glass.

NOTE: Oil level will be lower with engine running or with hitch raised.

If oil level is below the lower mark, remove filler cap (B) and add hydraulic oil.
