Lubricating Hitch Components

SERVICE INTERVAL - DAILY OR 10 HOURS

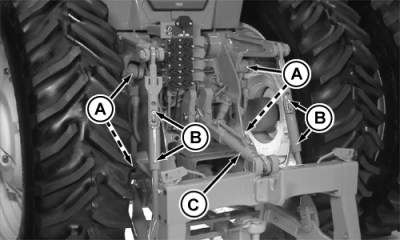

Apply several shots of grease to lift cylinder ends (A).

Lubricate lift links (B) and center link (C).

RW26288

AG,RX15494,2874 -19-25AUG00-1/1
