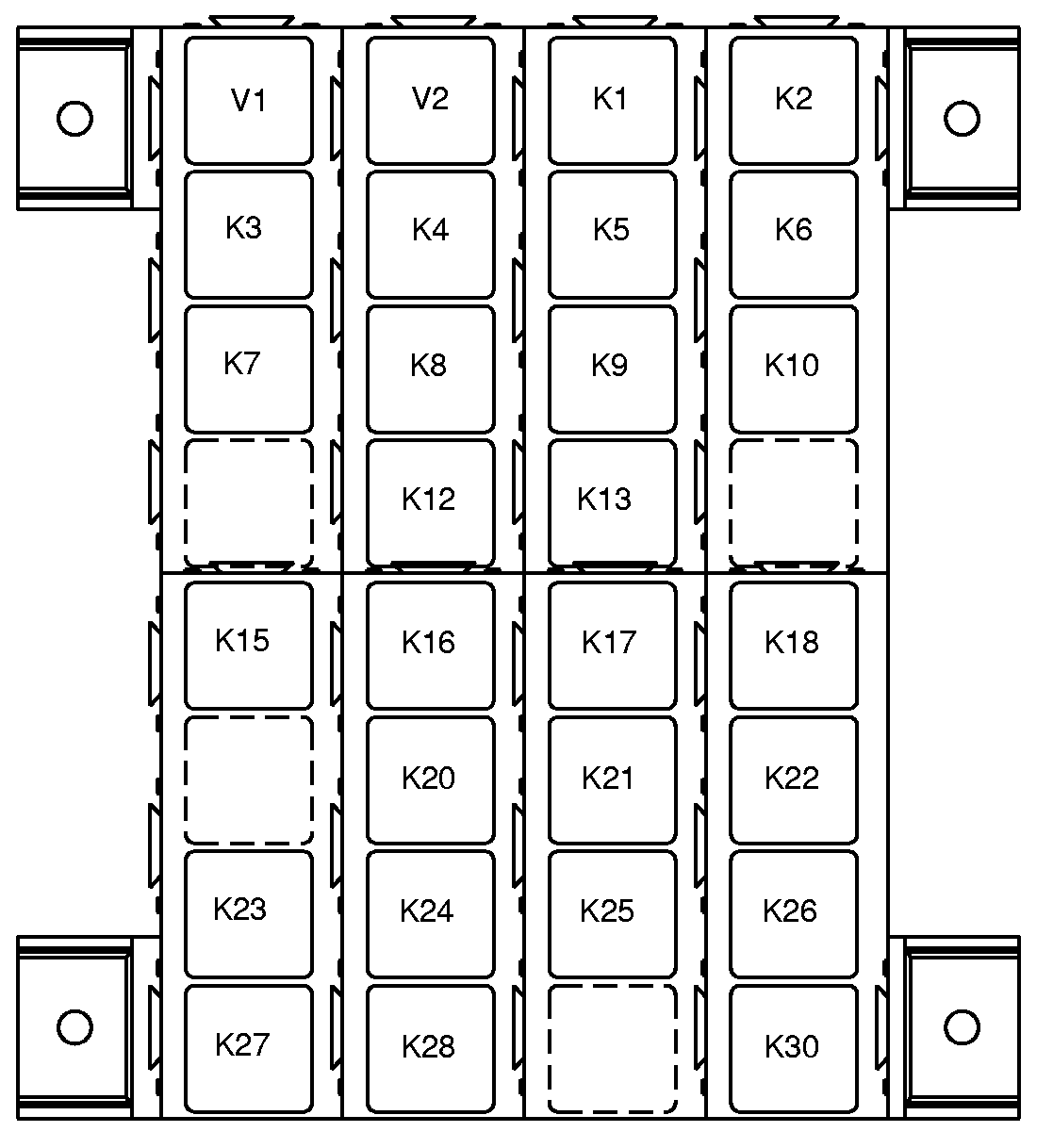

V1-Diode Block Number 1
V2-Diode Block Number 2
K1-Head Lights-Hi Beam
K2-Head Lights-Lo Beam
K3-Front Roof Floods
K4-Rear Roof Floods
K5-Rear Fender Floods, Lower Side Floods, Seven-Pin Accessory Outlet
K6-Upper-Side Floods
K7-K4 Grounding Relay
|
K8-Right Turn Signal Relay
K9-Left Turn Signal Relay
K10-Fender Turn Lights Relay
K11-Not Used
K12-Accessary Outlet Relay
K13-Engine Control Unit (ECU)
K14-Not Used
K15-Electronics (ELX)
K16-Come Home Transmission Relay
|
K17-Transmission Latch
K18-Transmission Enable
K19-Not Used
K20-Transmission Shifter Reverse
K21-Transmission Shifter Foreword
K22-Transmission Shifter Not Neutral
K23-Horn Relay
K24-Wiper Circuit Relay
|
K25-Wiper Interval Pulse Relay
K26-Wiper Interval Enable Relay
K27-Accessory Relay
K28-Blower Motor Circuit Relay
K29-Not Used
K30-Pressurizer Blower Motor and A/C Clutch Circuit
|
