Replacing Roof Front Flood Lights

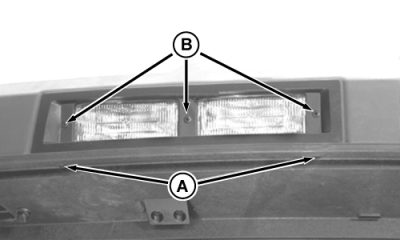

Remove screws (A) holding lamp bezel in roof.

Remove screws (B) to remove lamp from bezel.

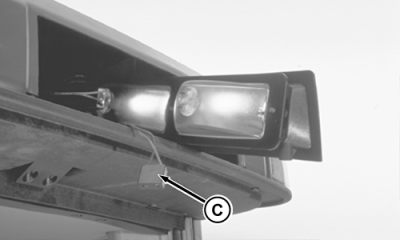

Disconnect lamp from connector (C) and connect new lamp.

RW55420A
RW55421A

AG,RX15494,2892 -19-07FEB00-1/1
