OMAR178323: 8110, 8210, 8310, and 8410 Tractors( 10 001- ), Block File: AG_RX15494_3179_19

Checking Engine Oil Level

SERVICE INTERVAL - DAILY OR 10 HOURS

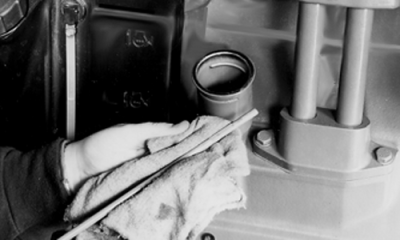

Remove dipstick and check oil level with tractor on level ground before starting tractor. Oil level should be between the "ADD" and the top of the cross-hatch area on dipstick.

NOTE: Cross-hitch area is considered FULL.

Do not operate engine with oil level below the "ADD" mark on dipstick.

NOTE: Tighten dipstick to check oil.

AG,RX15494,3179 -19-28JUL00-1/1
