Changing Engine Oil and Filter

SERVICE INTERVAL - 250 HOURS




IMPORTANT: Change engine oil every 125 hours if diesel fuel has a sulfur content greater than 0.5 percent.

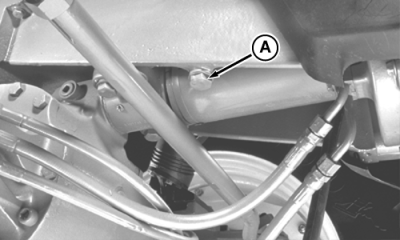

Run engine to warm oil. Stop engine. Remove crankcase drain plug (A). Replace plug after oil drains out.

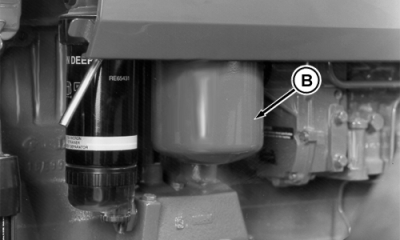

Remove filter element (B). Remove old packing and clean filter mounting surface. Apply a thin film of oil to new packing and install new element. Hand-tighten filter element. Do not overtighten.

Refill crankcase with seasonal viscosity grade oil. (See Fuels, Lubricants, and Coolant Section.)

Crankcase Capacity with Filter

8110... 21.5 L (22.7 qt)
8210... 23.5 L (24.8 qt)
8310... 25.0 L (26.4 qt)
8410... 27.0 L (28.5 qt)



Start engine and check for leaks.

Stop engine. Recheck oil level.

RW55465A
RW26668

AG,RX15494,3180 -19-28JUL00-1/1
