Changing Transmission-Hydraulic Oil

SERVICE INTERVAL - 1500 HOURS




Put the tractor on level ground and run the engine to warm oil.

Stop the engine and remove drain plugs (A) on bottom of differential case and transmission housing.

Reinstall plugs after oil has drained. (See Cleaning Transmission Filter Screen, Cleaning Hydraulic Oil Suction Screen and Draining Clean Oil Reservoir.)

Refill with Transmission-Hydraulic oil specified in Fuels, Lubricants, and Coolant Section.

IMPORTANT: Powershift control unit must be recalibrated when changing oil from one viscosity to another. See your John Deere Dealer.

Drain and Fill Capacity *

System... 117.8 L (31 gal)
System (Less Clean Oil Reservoir)... 91.2 L (24 gal)

* Capacities are average values and can vary between oil changes



Start and run engine several minutes. Check for leaks. Stop engine and recheck oil level after a minimum of five minutes. Add oil as necessary.

IMPORTANT: Change oil in the clean oil reservoir if oil is contaminated with water.

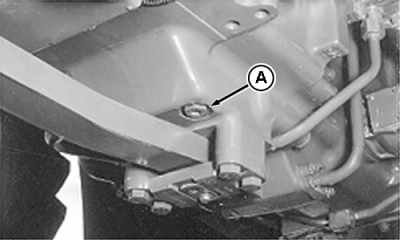

RW55391A

Differential Case

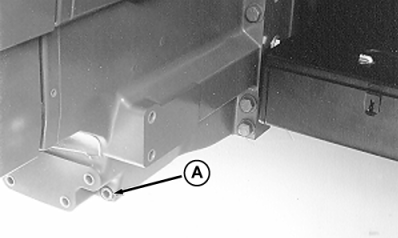

RW55392A

Transmission Housing
