Draining Clean Oil Reservoir

IMPORTANT: Change oil in clean oil reservoir if oil is contaminated with water.

Drain transmission-hydraulic oil.

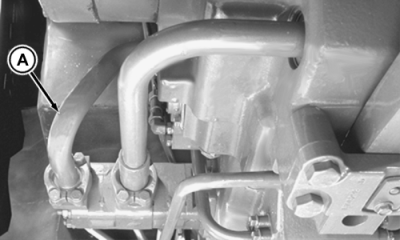

Remove the four cap screws and flanges from oil pipe (A). Turn pipe downward to allow oil to drain slowly. Drain 22.5-26.5 L (6-7 gal) of oil from reservoir.

Install oil line making sure O-ring is correctly positioned.

IMPORTANT: Fill differential housing with oil. Start engine and run at slow idle until Clean Oil Reservoir oil level indicator light goes off (approximately 2 minutes).

AG,RX15494,3184 -19-28JUL00-1/1
