Lubricating MFWD Axle

SERVICE INTERVAL - 250 HOURS *

* Daily or 10 Hours in extremely wet conditions



Use John Deere Non-Clay grease. DO NOT use Arctic grease with specification requirements per MIL-G-10-924C. (See Fuels, Lubricants, and Coolant Section.)

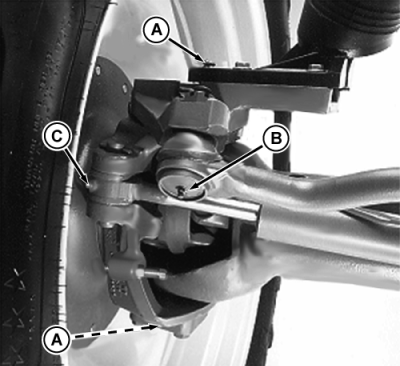

Kingpins -Apply grease to fittings (A) until grease appears at orifice on bottom end of each kingpin bearing.

Tie Rods -Apply several shots of grease to fittings (B).

Steering Cylinder -Apply several shots of grease to fittings (C).

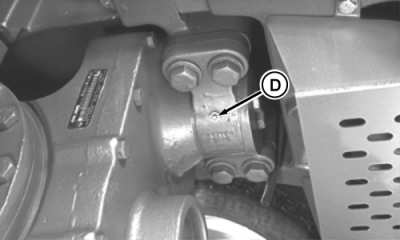

Axle Pivot -Apply several shots of grease to front and rear fittings (D).

RW56651A
RW56652A

AG,RX15494,3187 -19-28JUL00-1/1
