Checking MFWD Axle Housing and Wheel Hub Oil Level

Put the tractor on level ground. Turn wheel hubs until the words OIL LEVEL are horizontal. Remove plug (A). Oil level should be just below plug hole. If low, add oil through same hole.

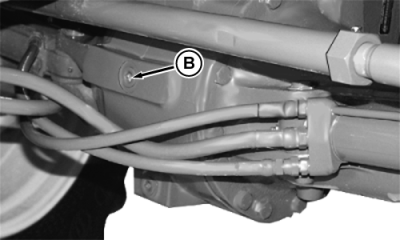

Check axle housing oil level (B). Oil level should be just below plug hole. If low add through same hole. Use lubricant specified under Gear Lubricant in Fuels, Lubricants, and Coolant Section.

John Deere GL-5 (85W-140) Gear Lubricant is recommended for axle hubs .

Use John Deere HY-GARD ® Oil in axle housing .

HY-GARD is a trademark of Deere & Company

AG,RX15494,3188 -19-28JUL00-1/1
