Replacing Fuel Filter

SERVICE INTERVAL - 750 HOURS *

* Interval can vary according to operating conditions

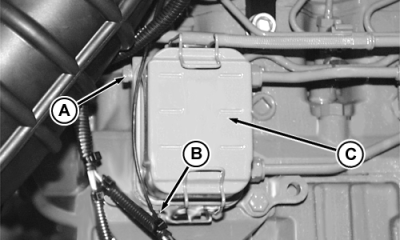

1. Loosen bleed plug (A) and remove plug (B) to drain fuel from filter.

2. Firmly hold fuel filter (C). Pull and release top and bottom retaining springs.

3. Remove and discard fuel filter.

4. Install new fuel filter onto guide pins of fuel filter base.

5. Hold filter firmly against filter base while securing bottom retaining spring first, then top retaining spring.

6. Install drain plug (B).

7. Bleed fuel system.

RW26876

AG,RX15494,3198 -19-14FEB00-1/1
