Bleeding Fuel System

1. Turn ignition key switch to ON position.

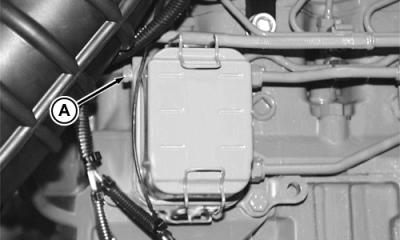

2. Loosen bleed plug (A) on fuel filter.

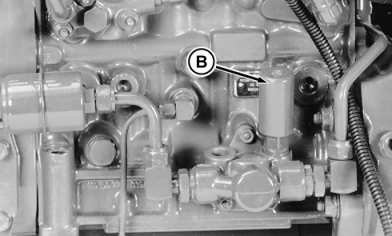

3. Push the hand primer (B) until a smooth flow of fuel, free of bubbles, comes out of the filter bleed plug hole.

4. Gently push the hand primer down and close the bleed plug. Tighten plug securely. DO NOT overtighten. Continue operating hand primer until slight pressure is felt.

AG,RX15494,3199 -19-28JUL00-1/1
