Replacing Fuel Pre-Filter

SERVICE INTERVAL - 750 HOURS *

* Interval can vary according to operating conditions



IMPORTANT: When installing pre-filter, arrow must point in the direction of fuel flow. Incorrect installation could cause transfer pump damage.

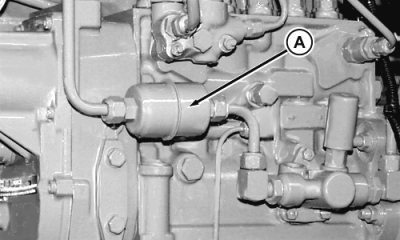

1. Remove pre-filter (A) from fuel lines.

2. Install new pre-filter.

3. Bleed fuel system.

RW26874

AG,RX15494,3647 -19-28JUL00-1/1
