Operating Rotary Beacon Light-Optional

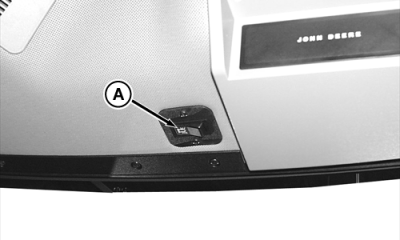

Push switch (A) to activate the rotary beacon light assembly (B).

When beacon light is not used:

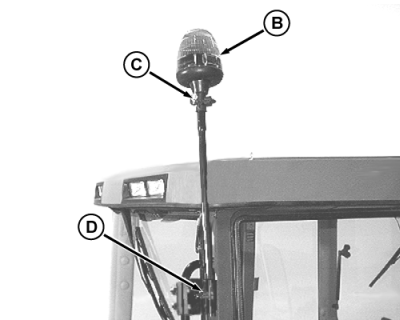

  • Loosen nut (C) and remove light assembly (B)
  • Install rubber protective cap on connector
  • Loosen bracket nut (D), invert beacon support, and tighten nut
RW27013
RW27014

AG,RX15494,3848 -19-25JUL00-1/1
