Checking Coolant Level

SERVICE INTERVAL - DAILY OR 10 HOURS

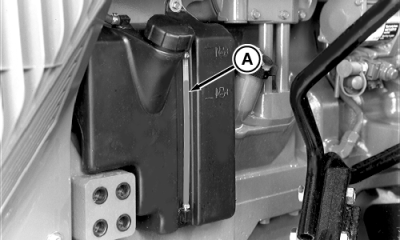

Check coolant level (A), before starting the tractor. Level should be slightly above lower mark when engine is cold.

If coolant level is low, check for leaks. Add coolant, as specified in Fuels, Lubricants and Coolant Section, to overflow tank.

RW27028

AG,RX15494,3853 -19-28JUL00-1/1
