Extremity Transport Warning Lights

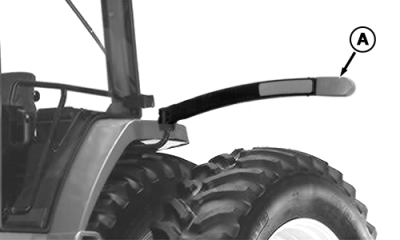

CAUTION: Extremity transport warning lights (A) are needed when tractor width exceeds 3.7 m (12 ft.). Always use road lights and transport warning lights when operating tractor on a road or highway at night OR during the day. Extremity transport warning lights alert other vehicles of your extended width.

IMPORTANT: To avoid damage, extremity lights may be retracted when parking tractor in storage building.

NOTE: Extremity lights operate with hazard switch in "ON" position or light switch in "road" position.

Adjust extremity warning lights (A) no more than 400 mm (16 in.) from widest point of tractor.

AG,RX15494,3885 -19-24AUG00-1/1
