Tightening Front Wheel Bolts-Two-Wheel Drive

causym CAUTION: Avoid the possibility of personal injury. Never operate the tractor with loose wheel bolts. Wheel bolts are critical and require retightening.

Tighten bolts to specification.

Axle and Wheel Bolts - Specification

Axle Bolts -Torque 600 N·m (445 lb-ft)
Wheel-to-Hub -Torque 310 N·m (230 lb-ft)

Drive tractor about 100 meters (100 yd), and retighten wheel-to-hub bolts.

Retighten bolts after working 3 HOURS and again after 10 HOURS .

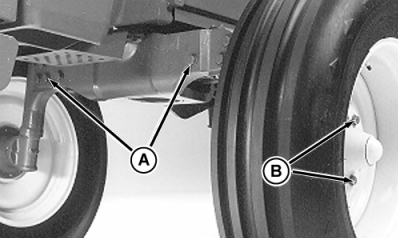

RW55246A

AG,RX15494,3886 -19-25AUG00-1/1
