OMAR178323: 8110, 8210, 8310, and 8410 Tractors( 10 001- ), Block File: AG_RX15494_3889_19

SERVICE INTERVAL - 1500 HOURS

1. Put the tractor on level surface.

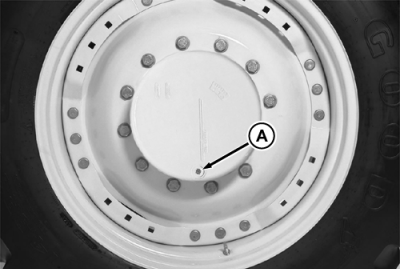

2. Rotate wheel until drain fill hole (A) is at bottom of hub. Remove plug and drain oil.

3. Rotate wheel with drain-fill plug positioned horizontally after oil has drained.

4. Add John Deere GL-5 (85W-140) Gear Lubricant through drain-fill hole until oil is even with bottom of hole. Install the plug.

Wheel Hubs

Oil Capacity... 3.4 L (3.6 qt)

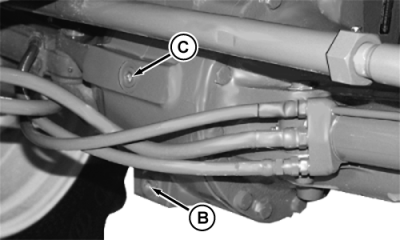

5. Remove axle housing drain plug (B). Replace plug after oil has drained.

6. Add John Deere HY-GARD ® Oil through fill hole (C) until oil is even with bottom of hole. Install the plug.

Axle Housing

Oil Capacity... 13.6 L (14.2 qt)

7. After a few minutes of operation, re-check oil level. Add more if necessary.

8. Tighten plugs.

MFWD Drain Plugs - Specification

Drain Plug -Torque

70 N·m (52 lb-ft)

HY-GARD is a trademark of Deere & Company

AG,RX15494,3889 -19-25AUG00-1/1
